Power ESP32 Boards: How to Power Your ESP32 Correctly!

The ESP32 is a powerful microcontroller widely used in IoT and embedded systems projects, but choosing the right power source might be a challenge for beginners.
Which Pin allows which voltage? Is it okay to power the ESP32 with a power bank?

In this article, we will have a look at powering the ESP32 via USB, the VIN pin, and the 3V3 pin with external power sources like batteries. Also, I will answer some of the most common questions.

Power ESP32 Boards via USB

Most ESP32 development boards come with a built-in USB-C or micro-USB port, allowing them to be powered directly via a micro-USB or USB-C cable. This is the most convenient method, as it allows for both power and programming.

Also, you generally don’t have to worry about the voltage supplied to your ESP32, as the USB standard is 5V. Even modern Quick Charge (QC) ports will only provide the ESP32 with 5V, even though they can supply 9V or 12V as well.
However, be aware that this is only true for USB ports of computers, or proper power adapters/power banks that stick to the USB standard.

Voltage and Current Requirements

• The USB port typically provides the needed 5V to the ESP32 board
• Recommended current: 500 mA – 1A

Troubleshooting tips

• ESP32 not powering on? Try using a different USB cable or port
• Frequent resets or instability? Your USB power supply might not provide enough current or voltage.

Powering ESP32 via the VIN Pin

The VIN pin (sometimes labeled V5 or V5.0) can be used to power the ESP32 with an external regulated 5V DC power source, such as a battery pack or a voltage regulator.

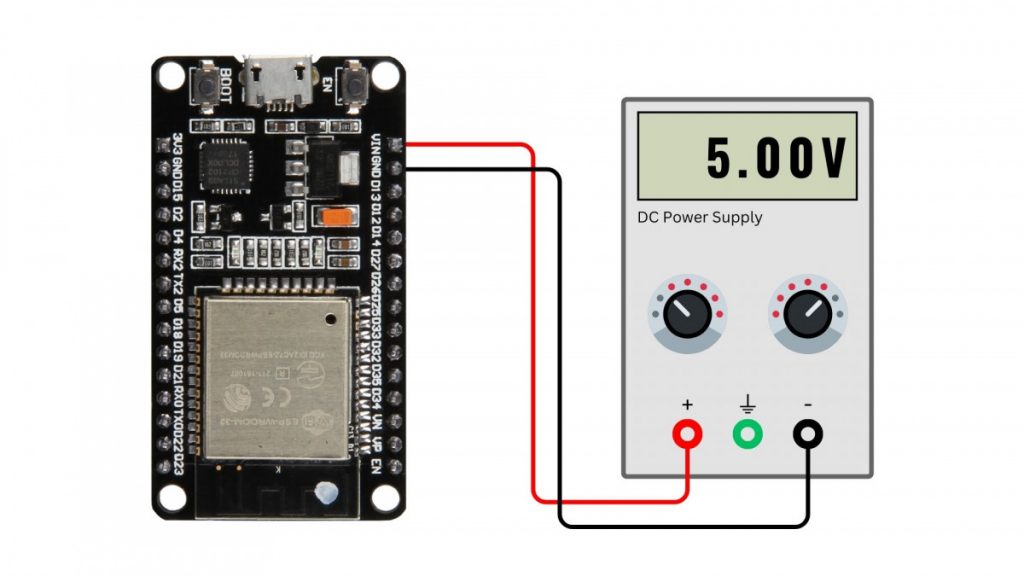

To power the ESP32 via the VIN pin, connect the positive (red) wire of your 5V power source to the VIN pin and the ground (black) wire to the GND pin.

However, be extremely careful when connecting an external power source, as too much voltage can fry your ESP32. This happened to me more than once.
If you supply less than 5V, you won’t break anything but the ESP32 won’t function properly.

Voltage and Current Requirements

• Input Voltage: 5V Direct Current (DC)
• Current: 500mA – 1A

Troubleshooting Tips

• ESP32 not turning on? Ensure the power source provides a stable 5V and can deliver at least 500mA.
• ESP32 behaving weirdly? Again, check whether your power source supplies 5V and a minimum current of 500mA
• ESP32 not working anymore? If your board doesn’t work with any power source (like USB), you may have fried your ESP32.

Power the ESP32 via the 3V3 Pin

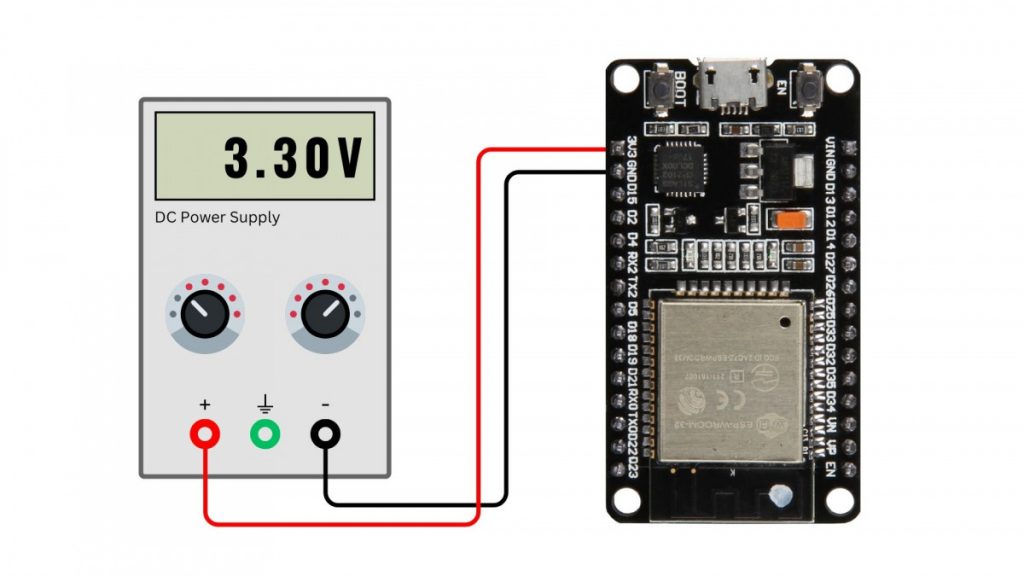

The ESP32 has a 3.3V power rail, which can be used for direct power input. So, similar to the VIN pin, you can power your ESP32 development board via the 3V3 pin.
This method requires a regulated 3.3V power supply, such as an LDO voltage regulator* or a buck converter*.

Again, be careful when connecting a power source to the 3V3 pin, as it might fry your board if the voltage is too high.

Voltage and Current Requirements

• Input Voltage: 3.3V Direct Current (DC)
• Current: 500mA – 1A

Troubleshooting Tips

• ESP32 not turning on? Ensure the power source provides a stable 3.3V and can deliver at least 500mA.
• ESP32 behaving weirdly? Again, check whether your power source supplies 3.3V and a minimum current of 500mA
• ESP32 not working anymore? If your board doesn’t work with any power source (like USB), you may have fried your ESP32.

Using Batteries to Power ESP32 Boards

Using batteries to power the ESP32 makes it suitable for portable applications. Depending on the voltage of your battery, you may need to use a buck-boost converter to regulate the battery’s voltage to either 3.3V or 5V.

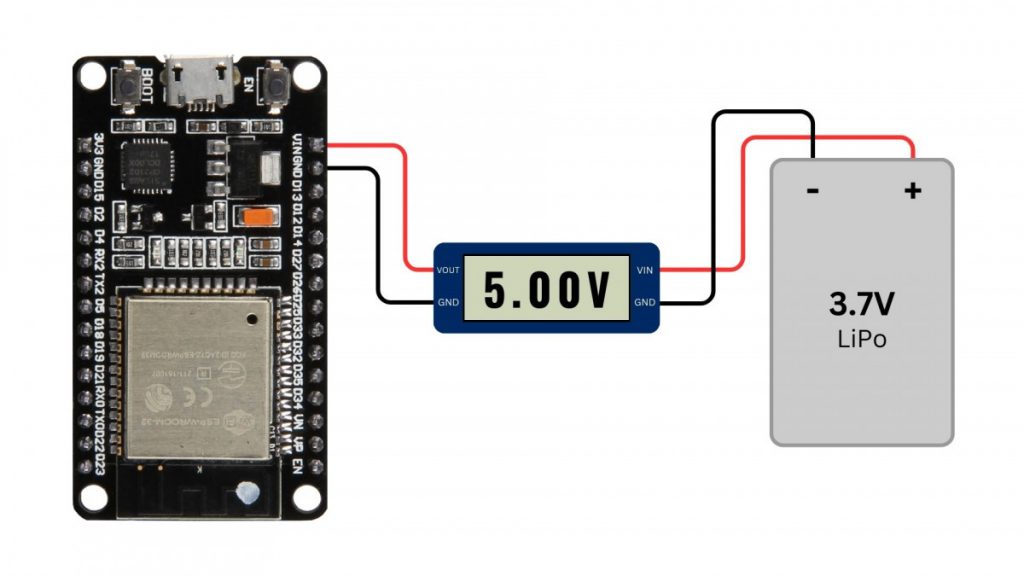

For example, if you have a 1S LiPo battery with 3.7V, either use a boost converter to step up the voltage to 5V and connect it to the VIN pin, or use an LDO regulator/buck converter to get 3.3V and connect it to the 3V3 pin.

Also, check out the voltage/current requirements and troubleshooting tips from the 3V3 and VIN pins.

Can You Power an ESP32 with a Power Bank?

Yes, you can power an ESP32 development board with a USB power bank via the micro-USB or USB-C port on your ESP32. However, some power banks automatically shut off if the ESP32 draws very little current (e.g. in deep sleep mode).

To prevent this, use a power bank that supports low-power mode, or add a small dummy load like an LED to keep the power bank active.

You can also use the QC (Quick Charge) port of your power bank, it will only provide the necessary 5V to your ESP32 board.

Can You Power the ESP32 with USB and Battery Simultaneously?

It depends on the board’s design. Some ESP32 development boards include automatic power switching circuits to safely switch between USB and battery power at the VIN pin. However, if your board lacks this feature, directly connecting both power sources can cause damage.

Also, never connect an external power source to the 3V3 pin while powering the ESP32 board via USB. This will cause damage to many boards!

Power Source Comparison

Power Source	Pros	Cons
USB	✅Easey to use ✅No extra components required ✅Power while programming	❌Not ideal for portable, standalone projects
VIN/3V3 Pin (Battery)	✅Ideal for battery-powered projects ✅Great for standalone projects ✅Higher power capacity	❌May require additional hardware ❌Harder to implement (can cause damage if not done correctly)
VIN/3V3 (continuos power supply)	✅Great for standalone projects ✅Higher power capacity	❌May require additional hardware ❌Harder to implement (can cause damage if not done correctly)

Conclusion

Choosing the right power method for your ESP32 projects depends on your power source and use case:

• USB / Power Bank – Best for development and programming
• VIN Pin (5V) – Great for stable, external power sources like power supplies
• 3V3 Pin – Ideal for efficient, lower-power applications
• Batteries – Portable but require proper regulation

Always ensure you’re using the correct voltage and sufficient current to avoid stability issues and frying your boards.

---

What’s your preferred way to power the ESP32? Let me know in the comments!

Thanks for reading
